Eurovent defines the design criteria that are classified as:

  • SC 1
  • SC 2
  • SC 3
  • SC 4


To activate the wanted Eurovent criteria in the COILS application, you have to do the following steps:



STEP 1:

Load the project.

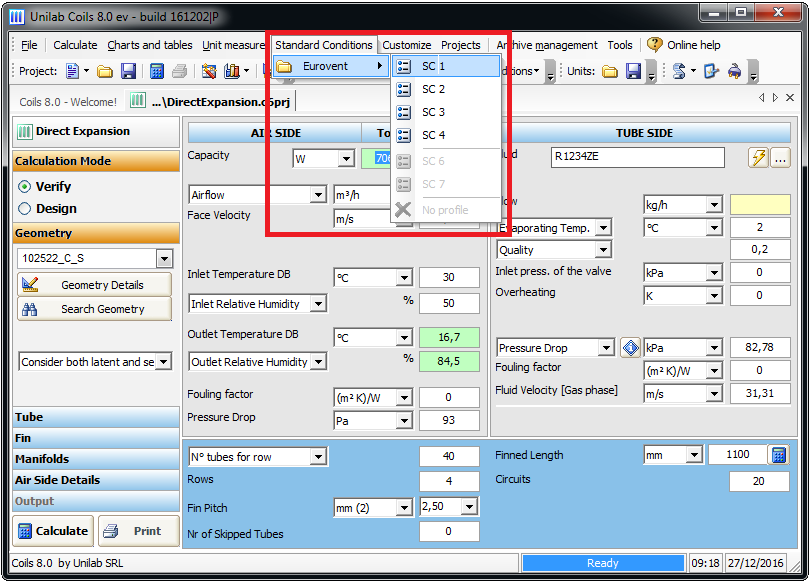

STEP 2:

Select the menù voice:

"Standard Conditions" -> Eurovent



STEP 3:

Press the button "Calculate"

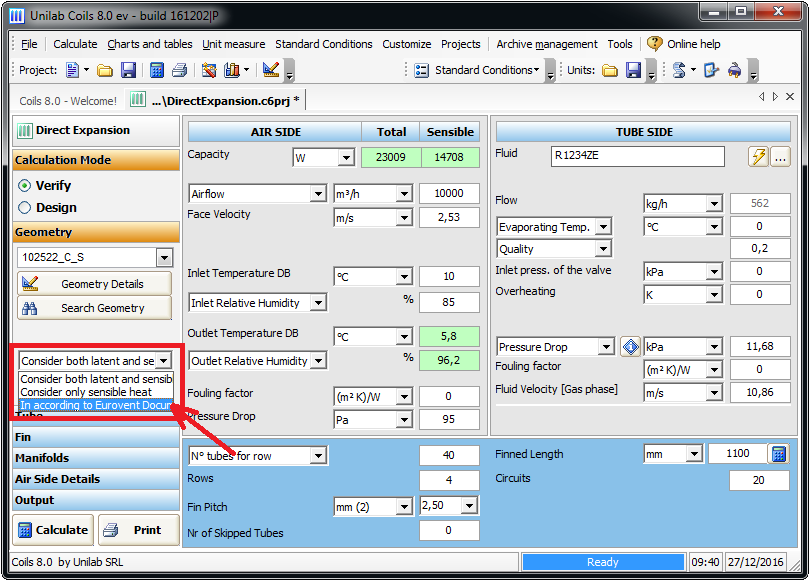

STEP 4:

Now it is available the option "In according to Eurovent Document".

Select this option.


STEP 5:

Press again the button "Calculate"

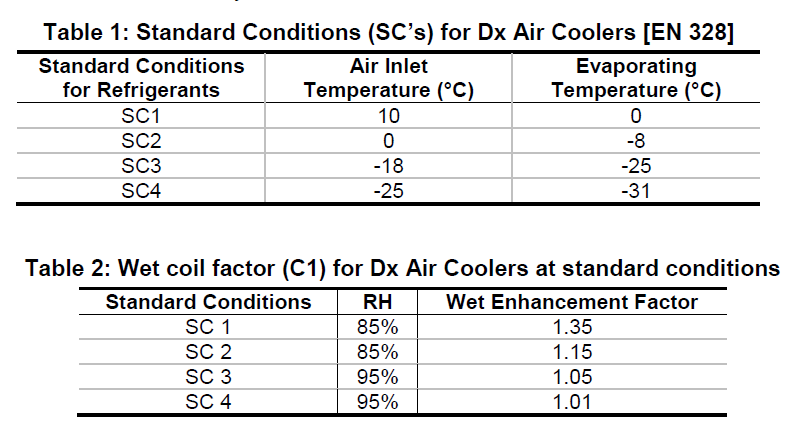

IMPORTANT (1):

The COILS application performs the calculation according to the tables 1 and 2 of the Eurovent Document.



Example (SC 1):

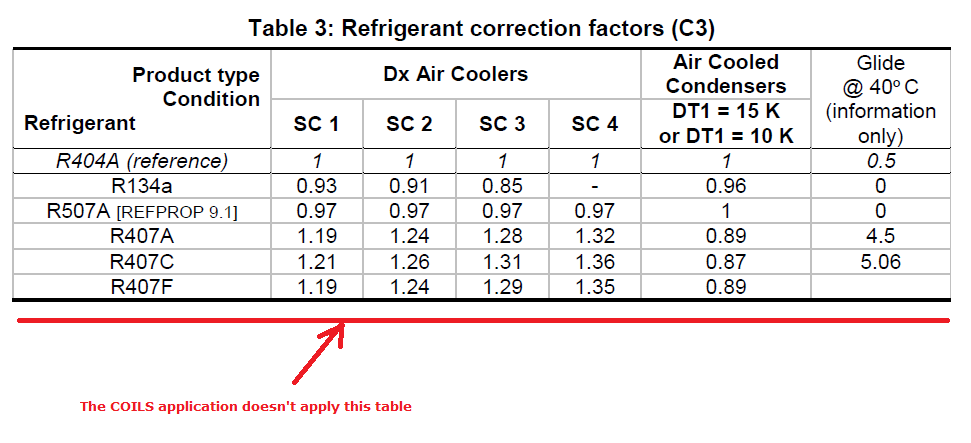

IMPORTANT (2):

The COILS application performs the calculation using the real characteristics of the fluid and so the table 3 is not applied.
